توضیحات
دیتاشیت محصول در قسمت زیر قابل مشاهده است:
UF-8040-MaxFlux DataSheets.cdr

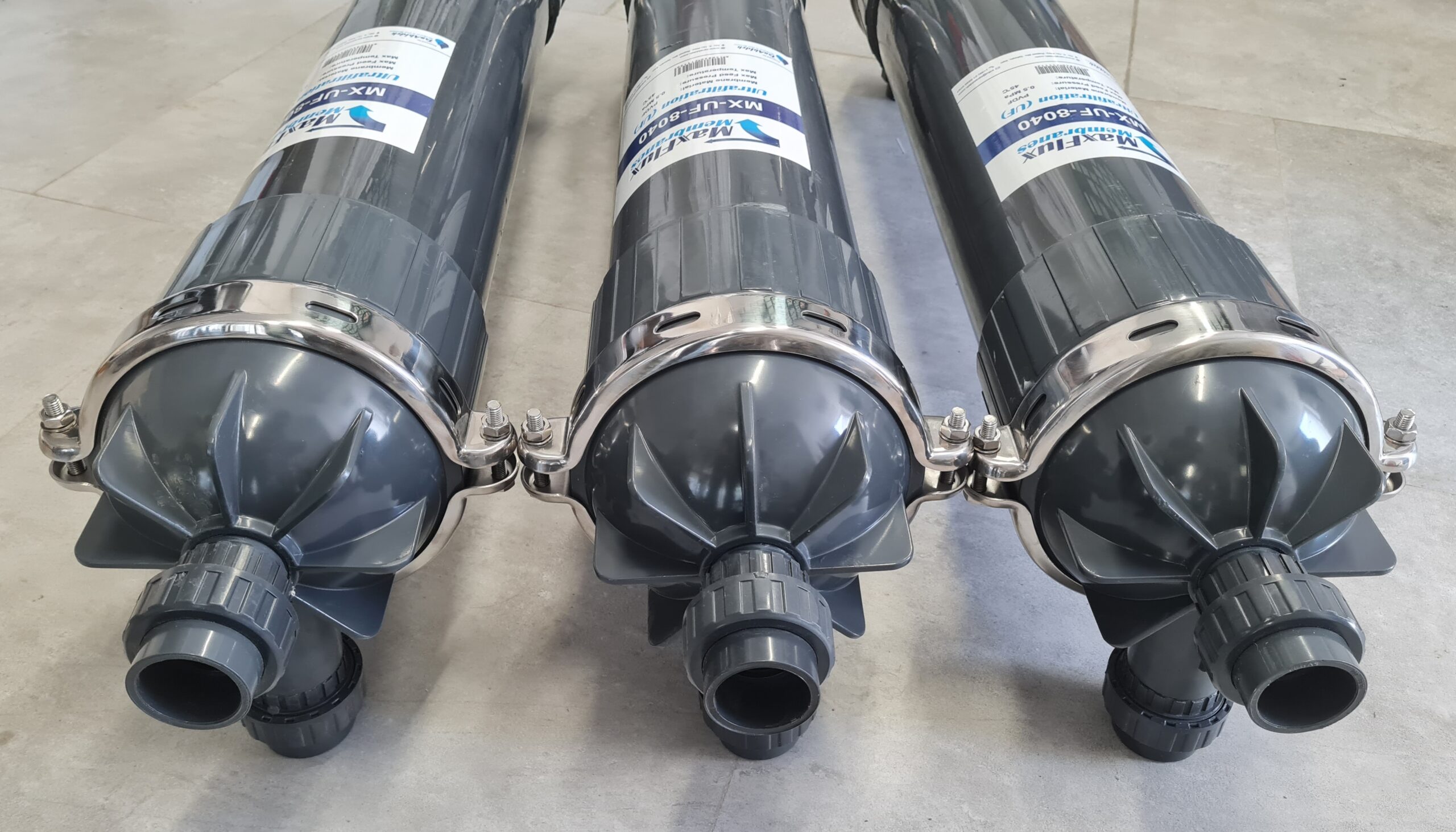

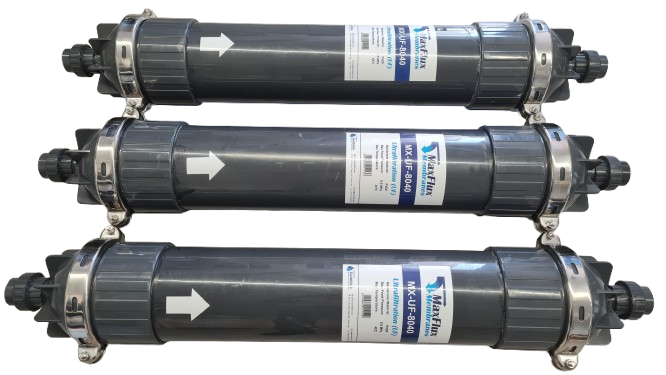

ماژول UF-8040
84.650.000 تومان
|
Performance (for most Feed Water) |
|
|
Filtrate Flow |
1.2-4 m3/hr |
|
Filtrate Turbidity |
≤0.1 NTU |
|
Filtrate SDI15 |
≤3 |
|
Type Configuration: Capillary Ultra Filtration Module |
|
|
Membrane Polymer |
PVDF |
|
Nominal Membrane Area |
40 m2 |
|
Nominal Pore Size |
0.03µm |
| Fiber Dimensions |
ID 1.5mm, OD 2.1mm |
|
Operating Parameters (for General use) |
|
|
Typical Filtrate Flux Range |
30-100 LMH |
| Backwash Flux |
60-200 LMH |
|
Maximum Applied Feed Pressure |
3.5 bar |
| Maximum Backwash Pressure |
2.5 bar |
|
Maximum TMP |
2.1 bar |
| Operating Temperature range |
5-40 օC |
|
pH Operating Range |
4-9(During Chemical washing 1-11) |
|
Operating Mode |
Outside-In Filtration |
|
NaOCl (max.) |
2000 ppm |
|
TSS (max.) |
50 ppm |
|
Particle Size (max.) |
100 µm |
|
COD (max.) |
50 ppm |
